Used Equipment & Parts

Our used equipment is rebuilt to our high standards and is available at a significant cost savings over new. Please call with any questions regarding equipment specifics and modifications to meet the needs of your process. FOR MORE INFORMATION CALL 419-281-6595
Bandit Purge Control - Used-Complete
Fully Tested - $ 995.00		 Bandit Shot Counter - Used-Complete
Fully Tested - $ 485.00
USED-1 USED-2

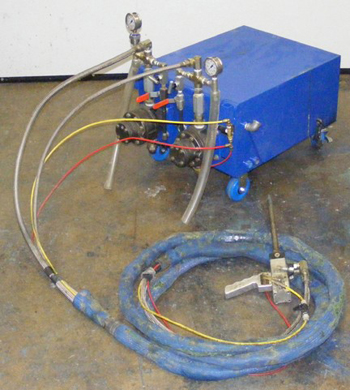

Bandit – 4 HP air drive Dispense Unit
H12/H3 pumps – 3.5/1 ratio ny volime
Solid dispense unit.
Options on this machine – May Vary Costs
Ratio
Hose length & size
Dispense gun
DC Drive System (1 or 2 HP)
Air Drive system - $ 6800 as set up		 EMC – Bandit Acrylic Dispense System
Transfer pumps are ARO Brand 4/1 ratio SS
Ram assemblies are Johnstone 3.5 inch posts
EMC M200 dispense unit modified
Exp-proof Switch and Motor
Almost all HP components are SS.
Std EMC Dispense Gun - Rebuilt
Newly rebuilt pumps from EMC, Microchem for acrylic
10/1 ratio – can be adjusted to your needs.
This unit is new. No adhesive has been run through it yet.
Market value is around $18-20k – Offered at $12k
Air Drive Unit EMC Acrylic
Cosense Fluid Sensors
Model 194-00125 - Output 2x 10A SPDT
Standard sensor package used on Some EMC dispense systems
Nipple size is 1 ½ NPT x 5 ½ inches long (other fittings attached)
New, never installed and wetted up.
Originally set up as 5 gallon pail sensors (with EMC adapters)
$ 450 complete		 EMC Rate/Counter Panel
New panel. Some controls have been dissected.
All removed connections tagged and labeled.
Currently has Cosense Fluid sensor hooked into
the controls. Can be purchased with or without.
Electrical schematic included. This will allow
some changes as to how equipment is tied in.
Manual/Automatic switch on front panel. Magnetic
sensor reads tooth count from pumps gear set.
$450 with/o fluid sensor
$850 with fluid sensor (Cosense)
USED EQUIPMENT
Bandit – 1 HP DC Drive Dispense Unit
H3/H3 pumps – 1/1 fixed ratio by volume
Max. output 2 lb/min. - Solid dispense unit.
Options on this machine – May Vary Costs
Hose length & size
Dispense gun
Reservoirs (Mini) $ 6100		 M200 EMC dispense system – new
B .75 Gerotor – Hex late model
Ratio currently 1/1
M-4500-ST gun for low output
120vac / 13fla
Reservoir heater and Vickers hydraulic flow control
Both combine to stabilize dispense rate.
This unit is several years old but never put into production.
New control box will be installed to allow manual gun or robotic control. All feed and dispense hoses (15-20ft) will be included. Ratio can be changed to whatever is necessary. This is designed as a low output metermix dispense system. I would suggest dispense rate can be between .06 to .5 lb/minute.
$ 8800 as described. If adhesive is sent to us, we will wet this system up, run test beads and run a pressure ratio check to confirm quality. Other options can be added which will reflect costs (including delivery). If shipped, $280 crate charge will be added.

For more information about our products or to place a special order, please call 419-281-6595 or email us at info@banditmachine.com
